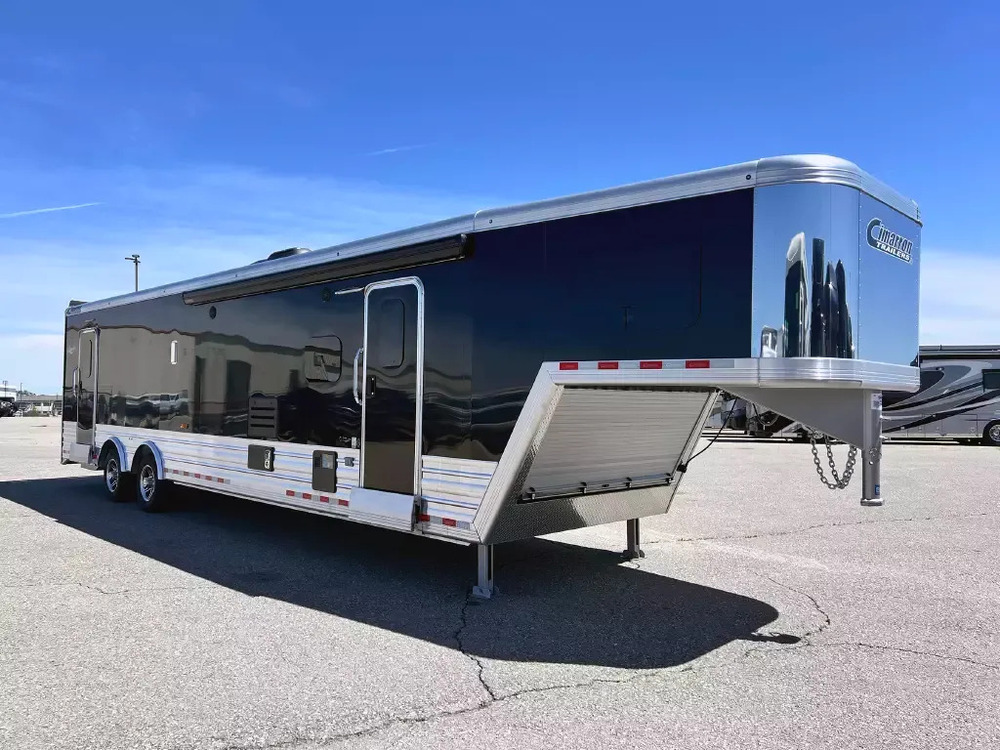

2020 Cimarron Freedom Toy Hauler

32’ box

16’ garage

16’ LQ

9’ gooseneck sleeping area

41’ total length

8.4” wide

FRAME SPECIFICATIONS

B&W Gooseneck 2 5/16” positive lock hitch adjustable height

Aluminum welded frame and sidewalls

Front roll up door enclosed w/expanded metal floor under goose neck

Load range J tires 235/75 R17.5

8 lug aluminum wheels 17.5”

8,000 lb. Dexter Tor flex Spread axle w/8 bolt hubs

2 5/8” studs

22.5 degree down axle with 3” lifting blocks

EXTERIOR SPECIFICATIONS

Roof Gelcoat Fiber Tech insulated w/honeycomb center

Extruded full length aluminum rocker panel siding mill finished

Aluminum black .050 exterior sheet side panels

Polished stainless steel full nose cap

Dual switch electric hydraulic landing gear front jacks

16’ Power electric frameless awing w/cover

10’ Slide out awning

Fuel station w/30-gallontank

Center turn signal indicator lights

Frameless windows w/tint

LED lighting

30” entry door w/screen and folding step

LIVING QUARTERS SPECIFICATIONS(LQ)

9’ sleeping area

16’ kitchen/bath area

Outlaw Conversions custom interior

Solid maple hardwood cabinets and wood trim throughout

Soft touch walls and ceiling

Padded pass through garage door

10’ power electric slide out w/4person dinette w/sleeper bed

Formica countertop

Bar counter w/2 stools

Vinyl floor

2–32” LED TV AM/FM/CD/DVD/MP3App/Sat Ready stereo w/4 speakers

Control center for water pump, water heater, tank levels

Porcelain toilet

32” radius shower

Roof sky light in shower

Power fan roof vent w/wall switch

Day/night window shades

CO/LPG/smoke detectors w/fire extinguisher

Emergency kick out windows

Center bathroom

Bathroom wardrobe cabinet

120 V outlets throughout

2-12V USB outlets

Solid partition wall

APPLIANCE SPECIFICATIONS

2 burner LPG stove w/glass cover

Stainless steel sink w/cover

6-gallon hot water heater LPG/120v

Microwave

120V Refrigerator 6.0 LPG/120V

Heater ducted 25K BTU A/C for LQ ducted

15K w/heat strip and thermostat A/C for Garage

Water pump 3.2 GPM

ELECTRICALSPECIFICATIONS

Xantrex Freedom series 3k watt inverter system

4 Lion energy lithium-Ion batteries

7.0 50-amp gas Onan generator w/exterior access door panel

50-amp shore power

50-amp shore power cable

90-amp charger

Surge protector

LED lighting

CAPACITYSPECIFICATIONS

2-30lb.LPG bottles

60 Gallon fresh water holding tank

30 Gallon Black water holding tank

30 Gallon grey water holding tank

30 Gallon fuel tank w/skid plate

GARAGE SPECIFICATIONS

16’long

3’ beaver tail

2” receiver towing hitch

CO/LPG//Smoke detectors

120V outlets through out

2-12V USB outlets

Extruded aluminum floor w/V truss

Maxx Air power roof vent rain sensor w/remote

Dual roll over sleeper sofa

Aluminum white .050 interior sheet side panels

Aluminum shelving 60” and 46”

Aluminum flip up door cabinet

32” Aluminum hook hangers

Aluminum airline track tie down

Aluminum fold down table 36”

Dual wall pop vents

Grey rubber coin floor

Opti Bright LED roof lighting

LED loading lights

Ramp door keyed locking latches

Ramp door grey rubber coin floor

25” entry door w/screen and folding step

2 windows w/privacy snap covers

Ramp door with cable lift assist

Carpeted fender well covers

Purchased and used for 1 season, we are the 2nd owners. The coach has been used a total of under 10times and the condition is excellent, showing very little wear and use.

Everything is in correct operating order and ready to use.

Both owners had the coach stored indoors.

Upon our purchase, an axle alignment, brakes, new tires, bearing service,

new CO/LPG/ smoke detectors were performed at the dealer.

All appliances were checked over and serviced.

Located in northern Colorado

Contact Rob for more information:

970-539-0297

paradise@what-wire.com
