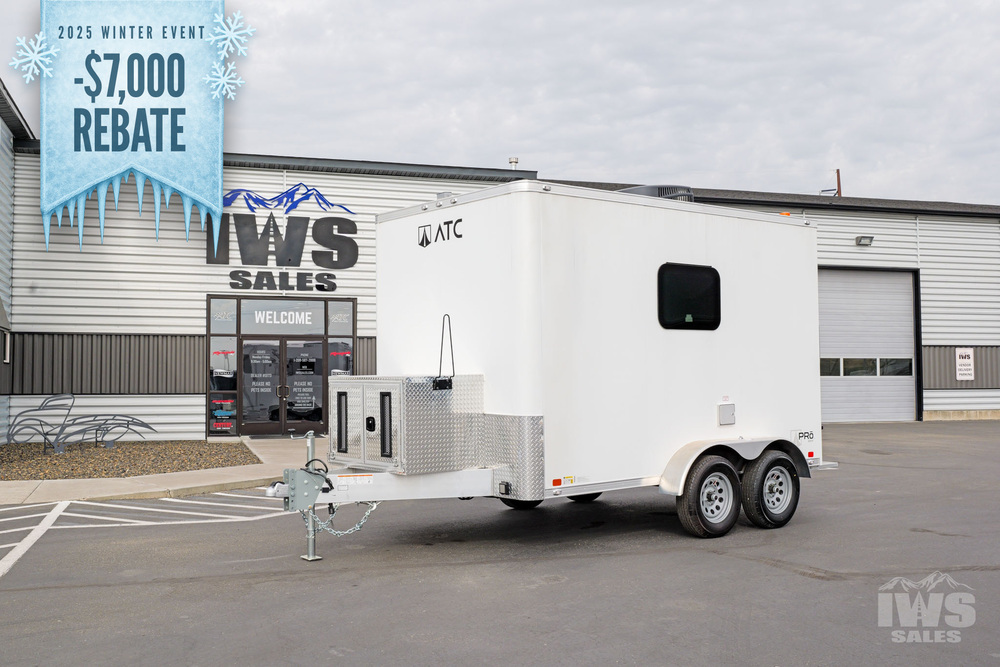

2024 12' ATC Fiber Optic Standard with Generator Standard Frame Features

• (2) 3,500 LB TORSION AXLES WITH ELECTRIC BRAKES
• NON-SPREAD AXLE SPACING
• ALL TUBE CONSTRUCTION
• ADJUSTABLE COUPLER WITH 20,000 LB. 2 5/16″ BALL HITCH
• 16″ ON-CENTER FLOOR CROSSMEMBERS
• 1″ X 2″ ALUMINUM ROOF CROSSMEMBERS @ 16″ ON-CENTER
• 1″ X 1.5″ WALL CROSSMEMBERS @ 16″ ON-CENTER
• 7-WAY TRUCK/ TRIALER CONNECTOR
• FLAT FLOOR DESIGN
• 8″ ALUMINUM FRAME
• FULL PERIMETER ALUMINUM FRAME
• FLAT FRONT DESIGN
• 24 GALLON IN-FRAME GAS TANK – END FILL
• (2) 5,000LB REAR SCISSOR JACK STABILIZERS
• 5,000 LB. TOP WIND TONGUE JACK
• JACK FOOT PAD
• SKID PLATES FRAME PROTECTION
• (4) ST205/75R15/LRD RADIAL TIRES ON GREY PAINTED STEEL WHEELS
• SPARE ST205/75R15/LRD STEEL WHEEL & TIRE
• EXTERIOR SPARE TIRE MOUNT PREP
• 12″ EXTENDED TRIPLE TUBE TONGUE

• INTELLI-POWER 60A CONVERTER/120v-50A BREAKER BOX WITH 12 V FUSE PANEL
• 930 A/775 CCA 12V AGM BATTERY
• 930 A/775 CCA 12V AGM BATTERY – ISOLATED TO GENERATOR ONLY
• MANUAL POWER CUT-OFF SWITCH (12V)
• 36″W AMBER DIRECTIONAL LIGHTBAR
• (2) AMBER LOWER LED CLEARANCE LIGHTS
• (5) AMBER UPPER LED CLEARANCE LIGHTS
• (2) RED LOWER LED CLEARANCE LIGHTS
• (5) RED UPPER LED CLEARANCE LIGHTS
• (2) HIGH OUTPUT LED SCENE LIGHTS
• (5) 14″ INTERIOR LED UNDER CABINET LIGHTS WITH WALL SWITCH
• (2) EXTERIOR AMBER STROBE LIGHTS WITH WALL SWITCH
• (2) RED LED SLIMLINE TAILIGHTS
• EXTERIOR 120V/15 GFI POWER RECEPTACLE
• (5) INTERIOR 120V/15A POWER RECEPTACLES
• 50A MOTORBASE POWER INLET WITH 25′ SHORE CORD

HEATING & AIR CONDITIONING

• 13,500 BTU LOW-PRO A/C WITH MANUAL CONTROLS
• 3,412 BTU WALL MOUNTED HEATER WITH CHOME GRILL – 120V/1000W

• COMMERCIAL GRADE 4.5KW ONAN GAS GENERATOR (120V) ** IWS ADDED OPTION
  • GERNERATOR MOUNTING PLATE WITH WEATHERPROOF JUNCTION BOXES
  • 50A AUTO-TRANSFER SWITCH
  • FUEL GUAGE WITH 12V POWER & SWITCH
  • REMOTE START
  • 30 Gallon Fuel Tank
